Product Description

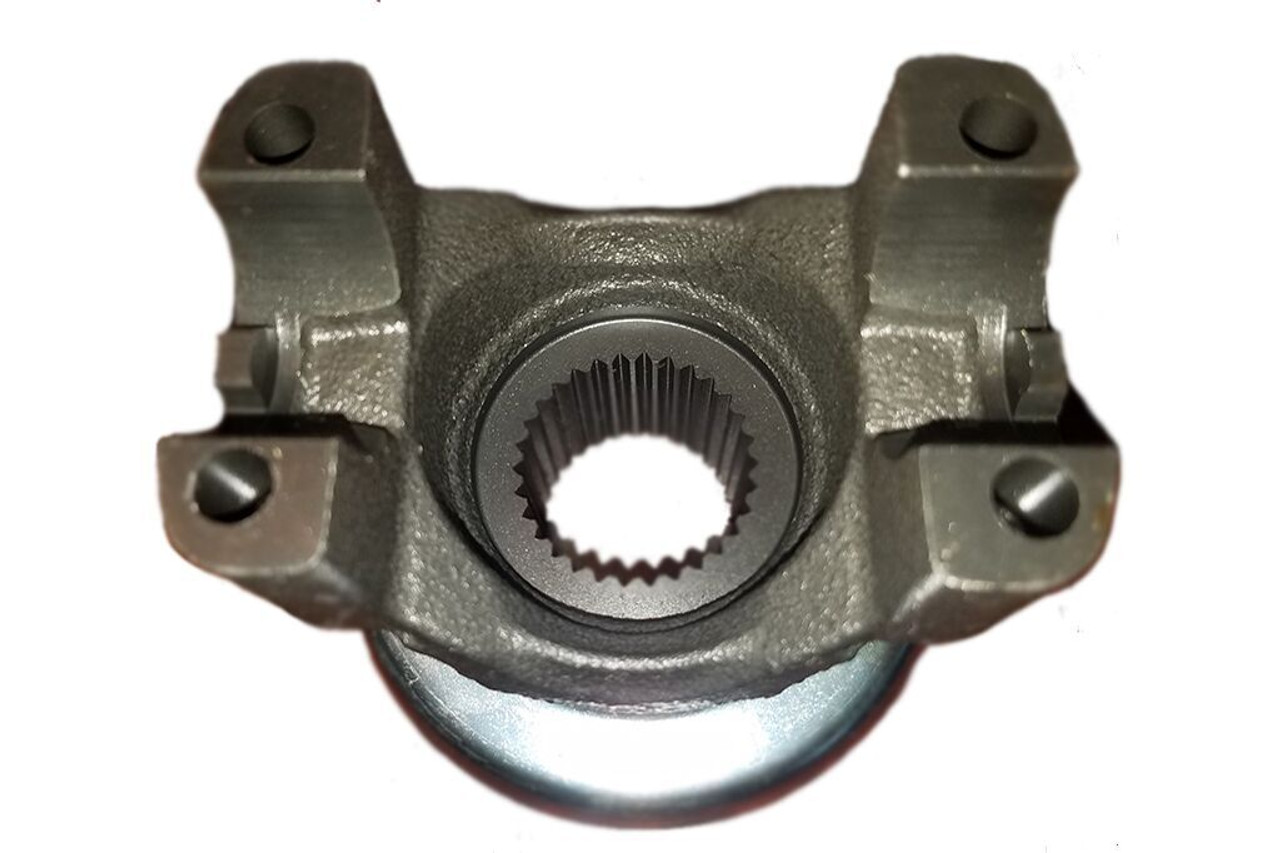

This 1350 pinion yoke fits the GM 10.5" Rear End
Don't Forget to Add the Strap Kit Below!
Pinion Yoke Specs:
- Spline Count: 30
- Spline Diameter: 1.590
- Hub Diameter: 2.200
- Thru Hole: 1.642
- Centerline To End: 3.913
- Ujoint: 1350
- Notes: Strap Type
1350 U joint - specs
(Takes an outside clip)
Outside Clip Measurement between tabs is 3-5/8"
Cap Diameter measurement is 1-3/16"
OUR PART NUMBER FOR THIS PINION YOKE IS: 3504-05
It takes the strap kit number 3570-20.
This pinon seal will be necessary on all applications before 2000. In 2000 GM started using a synthetic oil which required a triple lip seal with a larger ground hub diameter.

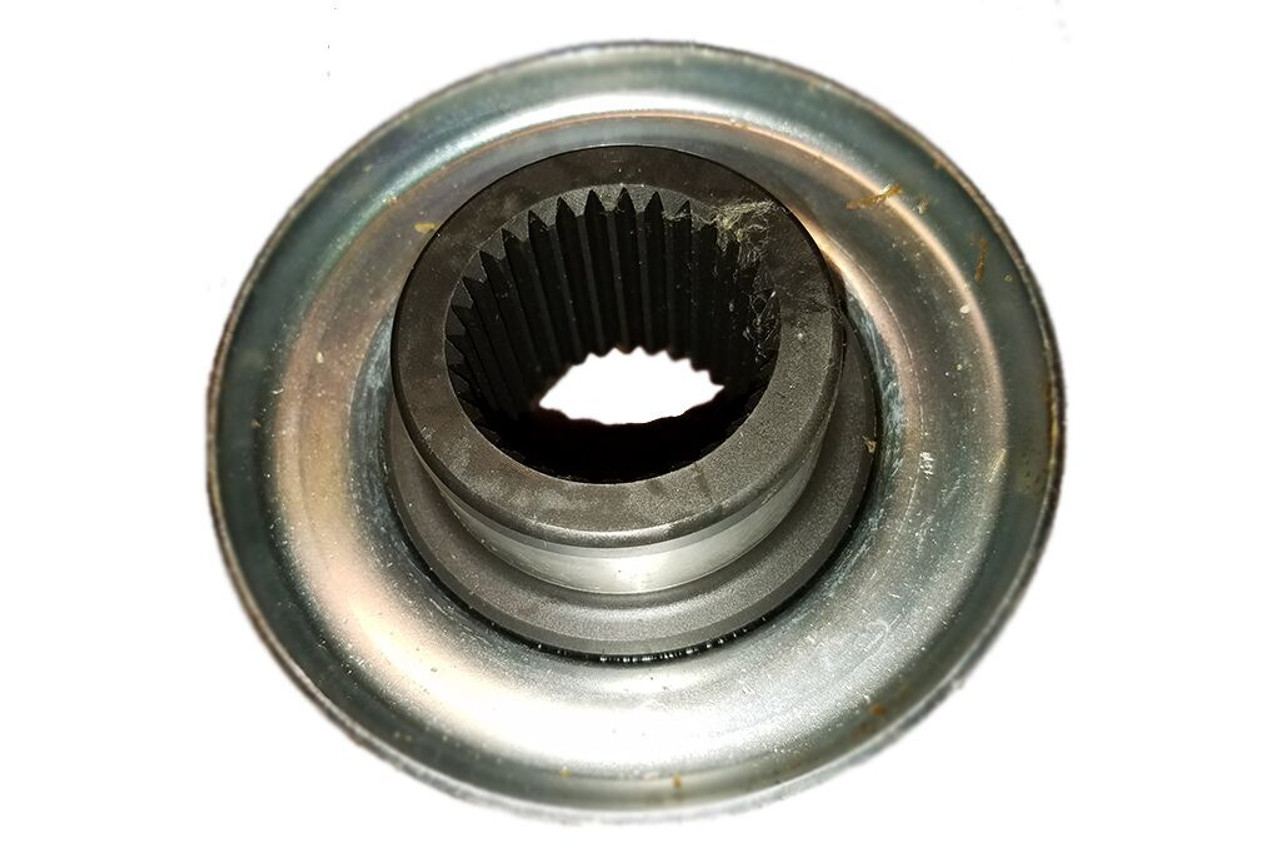

Includes sealed hub sleeve & new pinion seal
This yoke will fit all 2000 an up trucks without changing the original seal.
Applications for the GM 10.5"
1 Ton GM Pickup: 1973 - 2006 (Rear)
1 Ton GM Van: 1973 - 2004 (Rear)
3/4 Ton GM Pickup: 1973 - 2006 (Rear)
3/4 Ton GM Van: 1973 - 2006 (Rear)
